Rectangular Table Surface Grinding Machine Hydraulic Surface Grinder M7140

Ask Lasest Price
Brand Name :	Matsumoto
Model Number :	M7140
Certification :	CE
Price :	$9800-11500
Payment Terms :	T/T
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Rectangular Table Surface Grinding Machine Hydraulic Surface Grinder M7140

M7140 Rectangular Table Surface Grinding Machine Hydraulic Surface Grinder

Description:

The machine lead screw adopt special alloy steel to pass strict processing and technology for heating processing finished and it has high abrasive resistance.
The grinding head vertical can rapid lifting and it enhanced manufacturing efficiency
The grinding head cross movement drive by hydraulic, it can automatic and manual operation.
The lifting mechanism and mild steel shelf bracket adopt eccentric design easy by the adjustment that the lengthen service life of machine.

PROJECT	UNIT	M7140-1000/1600/2000
Table size(W*L)	mm	1000/1600/2000*400
Max.longitudinal movement of worktable	mm	1100/1700/2100
Max.distance from the spindle center to the worktable surface	mm	570
Max.lateral movement of grinding head	mm	450
Max.vertical movement of grinding head	mm	400
Vertical feed handwheel scale value of grinding head(per grid)	mm	0.01
Vertical feed handwheel scale value of grinding head(per revolution)	mm	1.00
Rapid lifting motor(power)	kw	0.37
Rapid lifting motor(speed)	r/min	1440
Grinding wheel size(ODWID)	mm	30012740
Speed of grinding wheel	r/min	1440
Power of spindle motor	kw	7.5
Total power of motor	kw	11/14
Power of oil pump motor	kw	3/5.5
Working accuracy	mm	0.015*1000
Surface roughness	μm	Ra0.63
Weight	kg	3800/5000/6500
Dimensions(LWH)	mm	229516732035 410516732035 500016732035

Details Images:

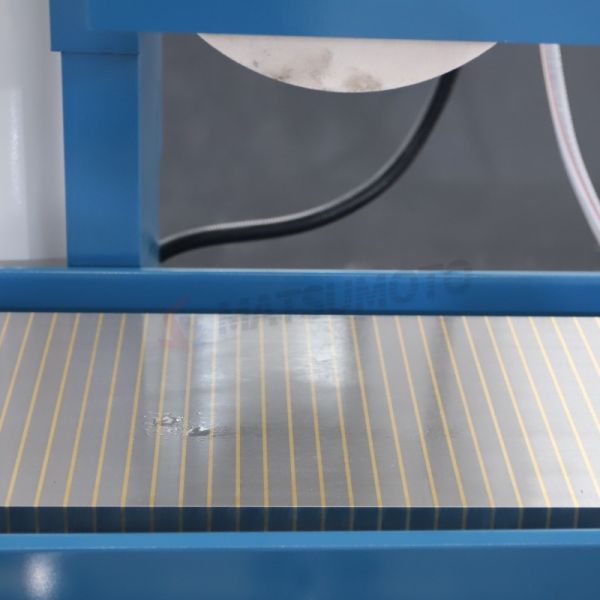

	ELECTRIC MAGNETIC CHUCK Can tighten many parts and even small parts, easy to operate, save time.
	LONGITUDINAL HYDRAULIC Table longitudinal move is controlled by hydraulic, easy to operate.

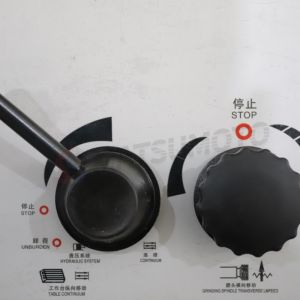

	OPERATION PANEL Table moving auto feed, other operate can be controlled by these button and handles.
	GRINDING WHEEL Large grinding volume, can grinding various planes and complex forming surface. Work lamp as standard.
	ELECTRONIC DIGITAL DISPLAY(OPTIONAL) Stable and precise measurement, quality assurance.

Rectangular Table Surface Grinding Machine Hydraulic Surface Grinder M7140
